Korespondent ANP-301

Korespondent ANP-301; Tesla; Praha, (ID = 363248) R-Player

Korespondent ANP-301; Tesla; Praha, (ID = 1372453) R-Player
Korespondent ANP-301; Tesla; Praha, (ID = 897820) R-Player Korespondent ANP-301; Tesla; Praha, (ID = 897822) R-Player
Korespondent ANP-301; Tesla; Praha, (ID = 277415) R-Player Korespondent ANP-301; Tesla; Praha, (ID = 277416) R-Player
Korespondent ANP-301; Tesla; Praha, (ID = 277417) R-Player Korespondent ANP-301; Tesla; Praha, (ID = 897821) R-Player
Korespondent ANP-301; Tesla; Praha, (ID = 897823) R-Player Korespondent ANP-301; Tesla; Praha, (ID = 1042785) R-Player
Korespondent ANP-301; Tesla; Praha, (ID = 1042786) R-Player Korespondent ANP-301; Tesla; Praha, (ID = 1042787) R-Player
Use red slider bar for more.
Korespondent ANP-301; Tesla; Praha, (ID = 897820) R-Player
Tesla; Praha,: Korespondent ANP-301 [R-Player] ID = 897820 633x668
Select picture or schematic to display from thumbnails on the right and click for download.
For model Korespondent ANP-301, Tesla; Praha, Bratislava etc.

Country:  Czechoslovakia
Manufacturer / Brand:  Tesla; Praha, Bratislava etc.
Brand

Supraphon
Year: 1960 ?? Category: Sound/Video Recorder and/or Player
Valves / Tubes 3: EF86 EBF89 ECC82
Main principle Audio-Amplification
Wave bands - without
Details Special Tape or Cassette-Format
Power type and voltage Alternating Current supply (AC) / 120; 220 Volt
Loudspeaker - For headphones or amp.
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Korespondent ANP-301 - Tesla; Praha, Bratislava etc.
Material Metal case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 285 x 105 x 210 mm / 11.2 x 4.1 x 8.3 inch

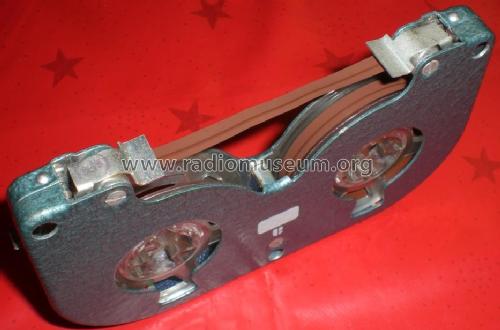

Notes Diktiergerät mit spezieller Normalbandkassette, Bandgeschwindigkeit 3,18 cm/s, Kassette für 2 x 20 min und 2 x 30 min, Übertragungsbereich: 350...3500 Hz, Funktionen des Laufwerkes : Vorlauf, Rücklauf, Aufnahme, Wiedergabe, eingebauter Verstärker, Anschluß für externen Lautsprecher 8 Ohm
Net weight (2.2 lb = 1 kg) 5.4 kg / 11 lb 14.3 oz (11.894 lb)
Source of data -- Collector info (Sammler)
Mentioned in Magnetofony 1, 1956-1970, Bozdech J.

Model page created by Wolfgang Lill. See "Data change" for further contributors.
