• Country
• Czechoslovakia

• Manufacturer / Brand
• Tesla; Praha, Bratislava etc.

• Year
• 1957 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 128734

• • Brand: Supraphon

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• EF22 EF22 EBL21 AZ11

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details

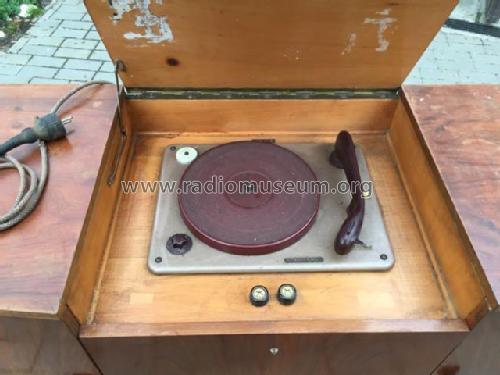

• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 120; 220 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Power out
• 2.5 W (unknown quality)

• Material

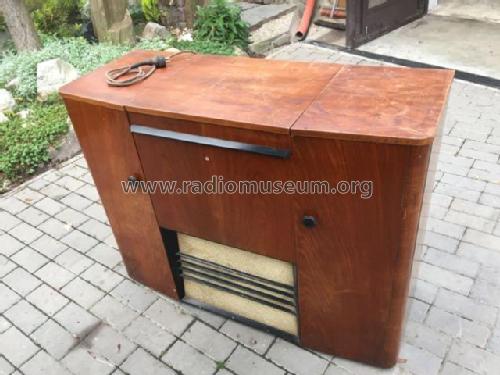

• Wooden case

• from Radiomuseum.org
• Model: LE-55 - Tesla; Praha, Bratislava etc.

• Shape
• Console with any shape - in general

• Notes

• Amplifier schematic see AZG 2.

• Literature/Schematics (1)
• Československé rozhlasové a televizní přijámače IV.

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
