Loudspeaker ARE 4608

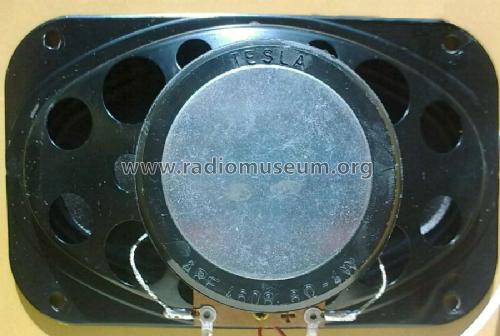

Loudspeaker ARE 4608; Tesla; Praha, (ID = 1219959) Speaker-P Loudspeaker ARE 4608; Tesla; Praha, (ID = 1219960) Speaker-P
Loudspeaker ARE 4608; Tesla; Praha, (ID = 1219961) Speaker-P Loudspeaker ARE 4608; Tesla; Praha, (ID = 1219963) Speaker-P
Loudspeaker ARE 4608; Tesla; Praha, (ID = 2149239) Speaker-P Loudspeaker ARE 4608; Tesla; Praha, (ID = 2149240) Speaker-P
Use red slider bar for more.
Loudspeaker ARE 4608; Tesla; Praha, (ID = 1219959) Speaker-P
Tesla; Praha,: Loudspeaker ARE 4608 [Speaker-P] ID = 1219959 481x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Loudspeaker ARE 4608, Tesla; Praha, Bratislava etc.:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Czechoslovakia
Manufacturer / Brand:  Tesla; Praha, Bratislava etc.
Brand

Supraphon
Year: 1970 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Loudspeaker ARE 4608 - Tesla; Praha, Bratislava etc.
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 158 x 100 x 50 mm / 6.2 x 3.9 x 2 inch
Notes 8 Ohm, 4 W, 110 - 15000 Hz.
Net weight (2.2 lb = 1 kg) 0.360 kg / 0 lb 12.7 oz (0.793 lb)
Source of data -- Original-techn. papers.

Model page created by Gabriel Toth. See "Data change" for further contributors.
