• Country
• Czechoslovakia

• Manufacturer / Brand
• Tesla; Praha, Bratislava etc.

• Year
• 1975 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 165936

• • Brand: Supraphon

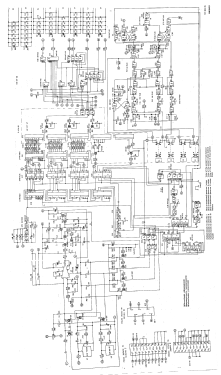

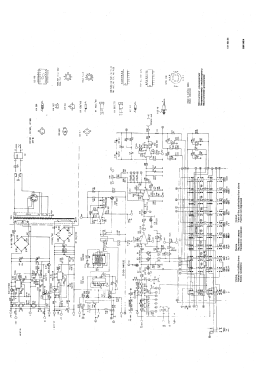

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 33

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 120; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

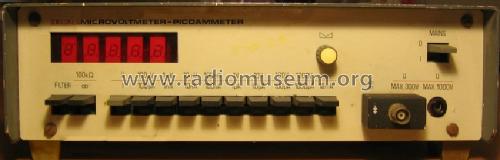

• Model: Microvoltmeter-Picoammeter BM545 - Tesla; Praha, Bratislava etc.

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 310 x 90 x 340 mm / 12.2 x 3.5 x 13.4 inch

• Notes

• Voltmeter measurement range: 1 mikroV - 1000 V. Ammeter measurement range: 1 pA -1,99 A.

  Price in 1983 in Hungary was 44400,- Ft.

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Source of data
• -- Original-techn. papers.

• Literature/Schematics (1)
• Műszer és Irodagép Katalógus,1983

• Author
• Model page created by Gabriel Toth. See "Data change" for further contributors.
