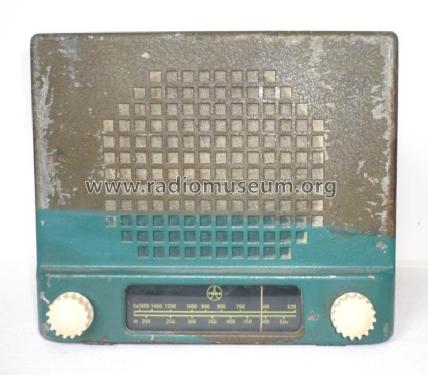

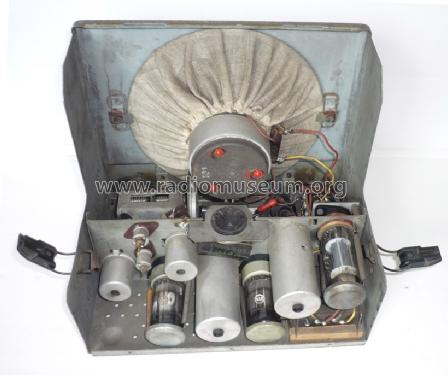

Omikron 513 BV
Tesla; Praha, Bratislava etc.
- Country
- Czechoslovakia
- Manufacturer / Brand
- Tesla; Praha, Bratislava etc.
- Year
- 1949–1952
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 76408
-
- Brand: Supraphon
Click on the schematic thumbnail to request the schematic as a free document.
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
- Power out
- 1.1 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Omikron 513 BV - Tesla; Praha, Bratislava etc.
- Literature/Schematics (1)
- Ceskoslovenske Rozhlasove a Televizni Prijimace I a II
- Author
- Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
