Oscilloscope BM574

Tesla; Praha, Bratislava etc.

  • Year
  • 1978 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 165917
    • Brand: Supraphon

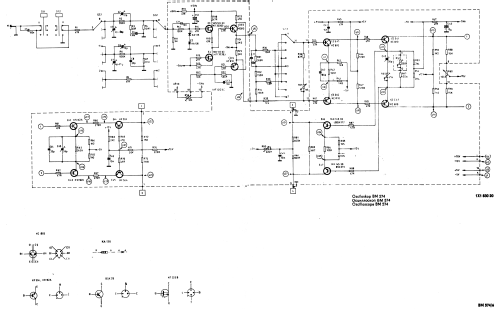

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Line / Batteries (any type) / 120; 220 / 10,5-15,5 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Oscilloscope BM574 - Tesla; Praha, Bratislava etc.
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 293 x 112 x 299 mm / 11.5 x 4.4 x 11.8 inch
  • Notes
  • One channel, 10 MHz.
  • Net weight (2.2 lb = 1 kg)
  • 6 kg / 13 lb 3.5 oz (13.216 lb)
  • Source of data
  • -- Original-techn. papers.
  • Author
  • Model page created by Gabriel Toth. See "Data change" for further contributors.
