Q-Meter Gütefaktormesser BM560

Q-Meter Gütefaktormesser BM560; Tesla; Praha, (ID = 1125329) Equipment Q-Meter Gütefaktormesser BM560; Tesla; Praha, (ID = 1125330) Equipment
Q-Meter Gütefaktormesser BM560; Tesla; Praha, (ID = 1125331) Equipment Q-Meter Gütefaktormesser BM560; Tesla; Praha, (ID = 1125332) Equipment
Q-Meter Gütefaktormesser BM560; Tesla; Praha, (ID = 1374489) Equipment Q-Meter Gütefaktormesser BM560; Tesla; Praha, (ID = 1374490) Equipment
Q-Meter Gütefaktormesser BM560; Tesla; Praha, (ID = 1374491) Equipment Q-Meter Gütefaktormesser BM560; Tesla; Praha, (ID = 1374493) Equipment
Q-Meter Gütefaktormesser BM560; Tesla; Praha, (ID = 1374494) Equipment
Use red slider bar for more.

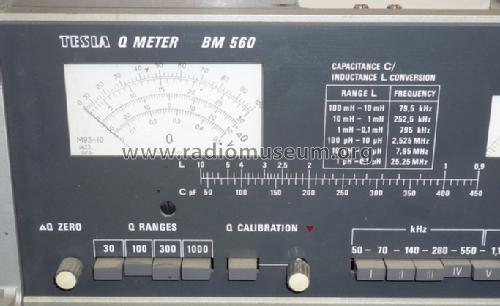

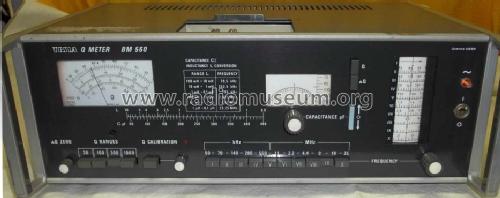

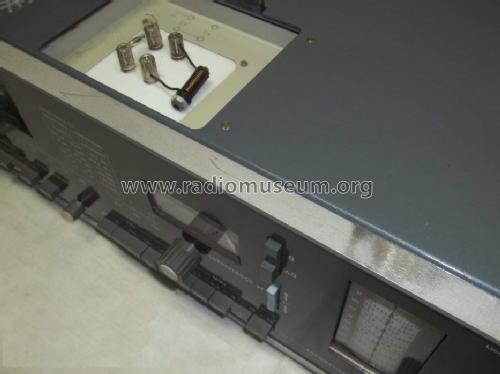

Q-Meter Gütefaktormesser BM560; Tesla; Praha, (ID = 1125329) Equipment
Tesla; Praha,: Q-Meter Gütefaktormesser BM560 [Equipment] ID = 1125329 717x384
Select picture or schematic to display from thumbnails on the right and click for download.
For model Q-Meter Gütefaktormesser BM560, Tesla; Praha, Bratislava etc.

Country:  Czechoslovakia
Manufacturer / Brand:  Tesla; Praha, Bratislava etc.
Brand

Supraphon
Year: 1980 ?? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Q-Meter Gütefaktormesser BM560 - Tesla; Praha, Bratislava etc.
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 390 x 200 x 150 mm / 15.4 x 7.9 x 5.9 inch
Notes Labormeßgerät zur Gütebestimmung von Induktivitäten.
Induktivitäten von 0,1µH - 100 mH in 10 Meßbereichen, 4 Gütefaktorbereiche 30 -1000.
Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Price in first year of sale 1'250.00 Mark
Source of data - - Data from my own collection

Model page created by Andreas Reuther. See "Data change" for further contributors.
