• Country
• Czechoslovakia

• Manufacturer / Brand
• Tesla; Praha, Bratislava etc.

• Year
• 1960 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 82976

• • Brand: Supraphon

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6F32 6F32 6L31 6Z31

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

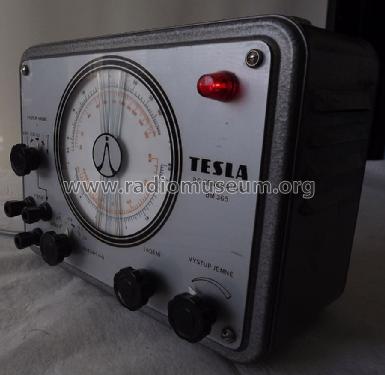

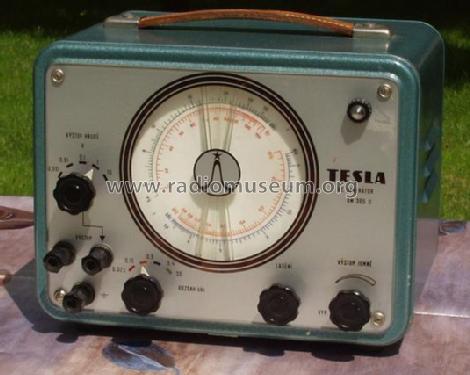

• Model: RC Generator BM365U - Tesla; Praha, Bratislava etc.

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 260 x 210 x 220 mm / 10.2 x 8.3 x 8.7 inch

• Notes
• Frequency range 25 Hz ... 30 kHz.

• Net weight (2.2 lb = 1 kg)
• 5.6 kg / 12 lb 5.4 oz (12.335 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Gabriel Toth. See "Data change" for further contributors.
