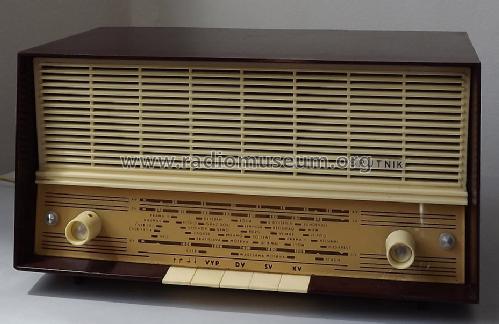

Sputnik 320A

Sputnik 320A; Tesla; Praha, (ID = 151872) Radio

Sputnik 320A; Tesla; Praha, (ID = 223922) Radio

Sputnik 320A; Tesla; Praha, (ID = 223923) Radio

Sputnik 320A; Tesla; Praha, (ID = 223924) Radio

Sputnik 320A; Tesla; Praha, (ID = 223925) Radio
Sputnik 320A; Tesla; Praha, (ID = 287800) Radio Sputnik 320A; Tesla; Praha, (ID = 287801) Radio
Sputnik 320A; Tesla; Praha, (ID = 287802) Radio Sputnik 320A; Tesla; Praha, (ID = 1502774) Radio
Sputnik 320A; Tesla; Praha, (ID = 1502775) Radio Sputnik 320A; Tesla; Praha, (ID = 1502779) Radio
Use red slider bar for more.
Sputnik 320A; Tesla; Praha, (ID = 287800) Radio
Tesla; Praha,: Sputnik 320A [Radio] ID = 287800 933x595
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sputnik 320A, Tesla; Praha, Bratislava etc.

Country:  Czechoslovakia
Manufacturer / Brand:  Tesla; Praha, Bratislava etc.
Brand

Supraphon
Year: 1961–1963 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: ECH81 EBF89 ECL82
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 120/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 28 cm = 11 inch
Power out 1.8 W (unknown quality)
from Radiomuseum.org Model: Sputnik 320A - Tesla; Praha, Bratislava etc.
Material Bakelite case
Shape Tablemodel with Push Buttons.
Notes Rectifier Diode:B250C75. Some models contain Selenium rectifier E240C75.
Collectors' prices
Mentioned in Ceskoslovenske Rozhlasove a Televizni Prijimace I a II

Model page created by Gabriel Toth. See "Data change" for further contributors.
