Supraphon H13-50

Supraphon H13-50; Tesla; Praha, (ID = 1556810) R-Player

Supraphon H13-50; Tesla; Praha, (ID = 1556811) R-Player

Supraphon H13-50; Tesla; Praha, (ID = 1556812) R-Player
Supraphon H13-50; Tesla; Praha, (ID = 323340) R-Player Supraphon H13-50; Tesla; Praha, (ID = 323342) R-Player
Supraphon H13-50; Tesla; Praha, (ID = 1917791) R-Player Supraphon H13-50; Tesla; Praha, (ID = 1971322) R-Player
Supraphon H13-50; Tesla; Praha, (ID = 1971323) R-Player Supraphon H13-50; Tesla; Praha, (ID = 1971324) R-Player
Supraphon H13-50; Tesla; Praha, (ID = 1971325) R-Player
Use red slider bar for more.

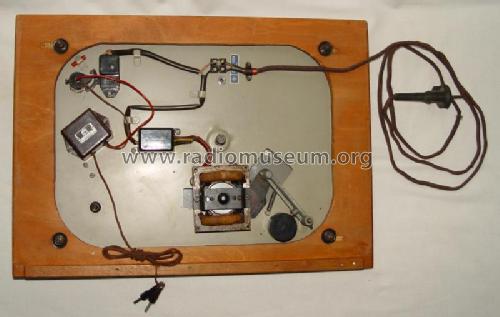

Supraphon H13-50; Tesla; Praha, (ID = 323340) R-Player
Tesla; Praha,: Supraphon H13-50 [R-Player] ID = 323340 795x431
Select picture or schematic to display from thumbnails on the right and click for download.
For model Supraphon H13-50, Tesla; Praha, Bratislava etc.

Country:  Czechoslovakia
Manufacturer / Brand:  Tesla; Praha, Bratislava etc.
Brand

Supraphon
Year: 1954 Category: Sound/Video Recorder and/or Player
Wave bands - without
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Supraphon H13-50 - Tesla; Praha, Bratislava etc.
Material Various materials
Shape Chassis only or for «building in»
Dimensions (WHD) 370 x 105 x 275 mm / 14.6 x 4.1 x 10.8 inch
Notes

3-touriges Plattenspieler-Laufwerk (Chassis) mit Reibradantrieb. Geschwindigkeiten 33/45/78 UpM.

Magnetische Abtastastköpfe auswechselbar (steckbar), rot markiert für Mikrorille, grün markiert für Normalrille.

Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Source of data - - Data from my own collection

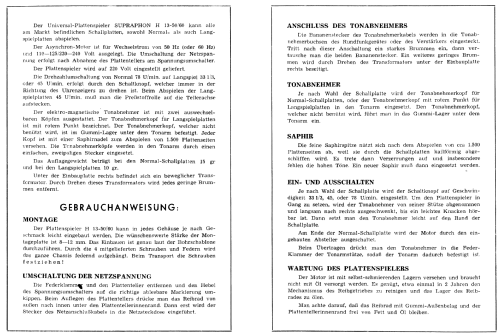

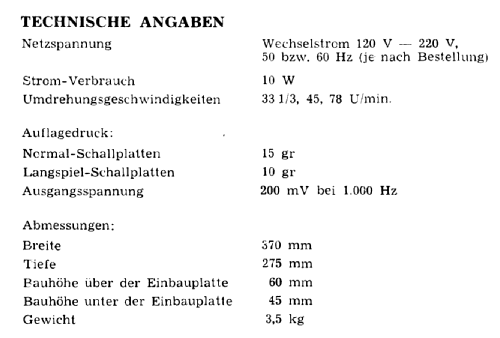

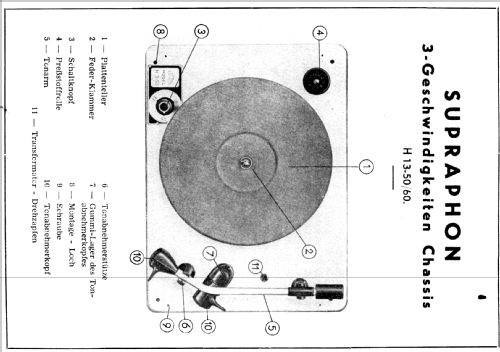

Mentioned in -- Original-techn. papers. (Bedienungsanleitung)

Model page created by Wilfried Winter. See "Data change" for further contributors.
