• Country
• Czechoslovakia

• Manufacturer / Brand
• Tesla; Praha, Bratislava etc.

• Year
• 1975 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 126204

• • Brand: Supraphon

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 120; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

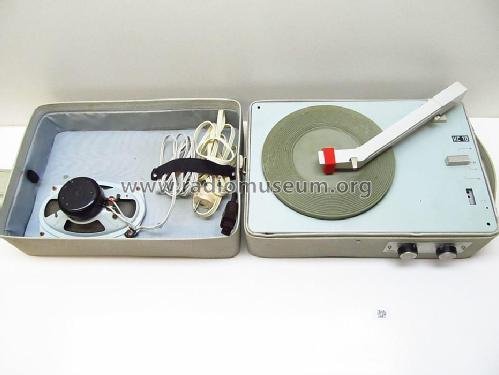

• Model: Supraphon HC 10 - Tesla; Praha, Bratislava etc.

• Shape
• Tablemodel, low profile (big size).

• Notes
• Monoplattenspieler, 33 und 45 UpM, eingebauter Verstärker, Lautsprecher im Deckel.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
