- Country
- Yugoslavia
- Manufacturer / Brand
- Radioindustrija Nikola Tesla; Beograd
- Year
- 1956 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 232654
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 1 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org

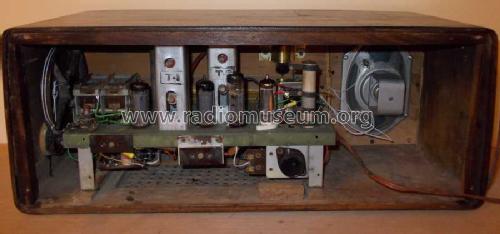

- Model: T-105 - Radioindustrija Nikola Tesla;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 530 x 235 x 205 mm / 20.9 x 9.3 x 8.1 inch
- Net weight (2.2 lb = 1 kg)
- 4 kg / 8 lb 13 oz (8.811 lb)
- Author
- Model page created by Antonio Masala. See "Data change" for further contributors.
