Funksprechgerät AM2001

Funksprechgerät AM2001; TFT Electronic; (ID = 2066474) Citizen

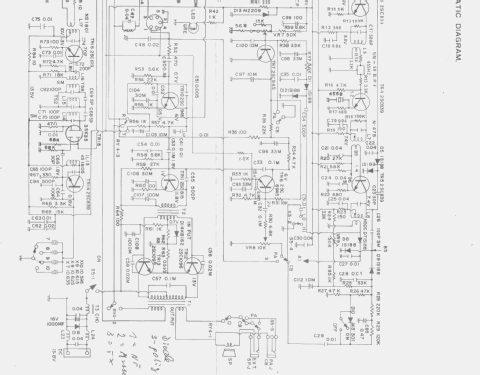

Funksprechgerät AM2001; TFT Electronic; (ID = 2066475) Citizen
Funksprechgerät AM2001; TFT Electronic; (ID = 2436454) Citizen Funksprechgerät AM2001; TFT Electronic; (ID = 2436456) Citizen
Funksprechgerät AM2001; TFT Electronic; (ID = 2436453) Citizen Funksprechgerät AM2001; TFT Electronic; (ID = 2436455) Citizen
Funksprechgerät AM2001; TFT Electronic; (ID = 2066473) Citizen
Use red slider bar for more.
Funksprechgerät AM2001; TFT Electronic; (ID = 2436454) Citizen
TFT Electronic;: Funksprechgerät AM2001 [Citizen] ID = 2436454 1400x562
Select picture or schematic to display from thumbnails on the right and click for download.
For model Funksprechgerät AM2001, TFT Electronic; Hattersheim

Country:  Germany
Manufacturer / Brand:  TFT Electronic; Hattersheim
Year: 1976 Category: Citizen Band Equipment
Semiconductors (the count is only for transistors) 17:
Main principle Transceiver; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 12 AM circuit(s)
Wave bands Short Wave (SW only)
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out 2.5 W (4 W max.)
from Radiomuseum.org Model: Funksprechgerät AM2001 - TFT Electronic; Hattersheim
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 215 x 65 x 195 mm / 8.5 x 2.6 x 7.7 inch
Notes

Mobilfunkgerät mit 12 Kanälen AM; 0,5W Sendeleistung. Regler/ Schalter für: Volume, Squelch, swr-cal, anl, ton hi-lo, loc-dx, pa-cb, extsp on -off, tune plus 0 minus,

7pol DIN mike Stecker.

Zulassung FTZ-Nr. PR27-230M/76

Net weight (2.2 lb = 1 kg) 1.770 kg / 3 lb 14.4 oz (3.899 lb)
Mentioned in -- Original prospect or advert (kopie)

Model page created by Frank Naujok. See "Data change" for further contributors.
