Grandette V50

Grandette V50; Thompson (ID = 813183) Radio Grandette V50; Thompson (ID = 813184) Radio

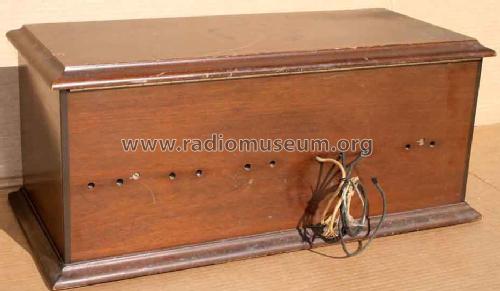

Grandette V50; Thompson (ID = 813185) Radio Grandette V50; Thompson (ID = 813186) Radio
Grandette V50; Thompson (ID = 813188) Radio Grandette V50; Thompson (ID = 813189) Radio
Grandette V50; Thompson (ID = 1101980) Radio Grandette V50; Thompson (ID = 1101982) Radio
Use red slider bar for more.
Grandette V50; Thompson (ID = 813183) Radio
Thompson: Grandette V50 [Radio] ID = 813183 933x559
Select picture or schematic to display from thumbnails on the right and click for download.
For model Grandette V50, Thompson Manufacturing Co., R.E.

Country:  United States of America (USA)
Manufacturer / Brand:  Thompson Manufacturing Co., R.E.
Year: 1925 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UV201A UV201A UV201A UV201A UV201A
Main principle TRF without regeneration; 2 AF stage(s); Neutrodyne
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Grandette V50 - Thompson Manufacturing Co., R.
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 22.5 x 9 x 10.5 inch / 572 x 229 x 267 mm
Notes Three dials (primary tuning control knobs). The model has been on the market at least since January 1925. Therefore the tubes were then UV and not UX types. We consider the first set of tubes, not later improved types.
Net weight (2.2 lb = 1 kg) 8.6 kg / 18 lb 15.1 oz (18.943 lb)
Price in first year of sale 125.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (4) January 1925 Radio Broadcast magazine advertisement


All listed radios etc. from Thompson Manufacturing Co., R.E.
Here you find 19 models, 10 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
