High-Com Rauschunterdrückung Hobby-Com

High-Com Rauschunterdrückung Hobby-Com; Thomsen Elektronik; (ID = 2038892) Kit

High-Com Rauschunterdrückung Hobby-Com; Thomsen Elektronik; (ID = 2038893) Kit

High-Com Rauschunterdrückung Hobby-Com; Thomsen Elektronik; (ID = 2038402) Kit

High-Com Rauschunterdrückung Hobby-Com; Thomsen Elektronik; (ID = 2038963) Kit

High-Com Rauschunterdrückung Hobby-Com; Thomsen Elektronik; (ID = 2038964) Kit

High-Com Rauschunterdrückung Hobby-Com; Thomsen Elektronik; (ID = 2038975) Kit

High-Com Rauschunterdrückung Hobby-Com; Thomsen Elektronik; (ID = 2038976) Kit

High-Com Rauschunterdrückung Hobby-Com; Thomsen Elektronik; (ID = 2038978) Kit

High-Com Rauschunterdrückung Hobby-Com; Thomsen Elektronik; (ID = 2048564) Kit

High-Com Rauschunterdrückung Hobby-Com; Thomsen Elektronik; (ID = 2048565) Kit
High-Com Rauschunterdrückung Hobby-Com; Thomsen Elektronik; (ID = 2038401) Kit High-Com Rauschunterdrückung Hobby-Com; Thomsen Elektronik; (ID = 2038956) Kit
High-Com Rauschunterdrückung Hobby-Com; Thomsen Elektronik; (ID = 2038957) Kit
Use red slider bar for more.

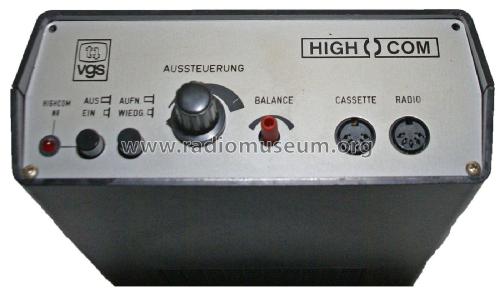

High-Com Rauschunterdrückung Hobby-Com; Thomsen Elektronik; (ID = 2038401) Kit
Thomsen Elektronik;: High-Com Rauschunterdrückung Hobby-Com [Kit] ID = 2038401 1400x828
Select picture or schematic to display from thumbnails on the right and click for download.
For model High-Com Rauschunterdrückung Hobby-Com, Thomsen Elektronik; Nenderoth:
Photo J.M 2016

Country:  Germany
Manufacturer / Brand:  Thomsen Elektronik; Nenderoth
Year: 1979 ? Category: Kit (Parts plus instruction) or building instructions only
Semiconductors (the count is only for transistors) 2: BC413 BC413 U401B U401B L7818CV
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit. / 18 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: High-Com Rauschunterdrückung Hobby-Com - Thomsen Elektronik; Nenderoth
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 178 x 72 x 207 mm / 7 x 2.8 x 8.1 inch
Notes

Stromaufnahme: ca. 80 mA
Frequenz (Bandbreite): 40 Hz - 17 kHz
Eingangswiderstand:
(Kompressor) ca. 5,6 kΩ
(Expander) ca. 50 kΩ
Ausgangswiderstand (Expander) : ca. 5 kΩ
Störabstand Eingangsverstärker Kompressor: 80 dB
Eingangsempfindlichkeit DIN:
ca. 0,2 mV/kΩ Eingangswiderstand
Anpassung DIN und Cinch: möglich
Rausch- und Störunterdrückung: 20 dB
Klirrfaktor HIGH-COM: < 0,1 % bei 1 kHz

Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Price in first year of sale 180.00 DM
Mentioned in - - Manufacturers Literature

Model page created by Jean Marchal. See "Data change" for further contributors.



All listed radios etc. from Thomsen Elektronik; Nenderoth
Here you find 3 models, 3 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Thomsen Elektronik;: High-Com Rauschunterdrückung Hobby-Com
Threads: 1 | Posts: 2
Hits: 596     Replies: 1
thomsen-el: erreur de fichiers sch
Jean Marchal
20.Nov.16
  1

Bonsoir,

Une erreur de source de fichier, m'a fait transférer 10 fichiers de sch  qui ne correspondent pas à ce modèle.

Il faudrait supprimer les dix fichiers suivants :

f_radio_controle_teletesterem85_descr02~~1.pdf

f_radio_controle_teletesterem85_descr03~~1.pdf

f_radio_controle_teletesterem85_descr04~~1.pdf

f_radio_controle_teletesterem85_descr05~~1.pdf

f_radio_controle_teletesterem85_descr06~~1.pdf

f_radio_controle_teletesterem85_descr07~~1.pdf

f_radio_controle_teletesterem85_descr08~~1.pdf

f_radio_controle_teletesterem85_descr09~~1.pdf

f_radio_controle_teletesterem85_descr10~~1.pdf

f_radio_controle_teletesterem85_descr11~~1.pdf

Désolé pour cette erreur

J.M

Gidi Verheijen
21.Nov.16
  2

Bonjour,

Pas de problème. J'ai supprimé les dix fichiers indiqués.

Cordialement,

Gidi Verheijen
