• Country
• Spain

• Manufacturer / Brand
• Thomson Española S.A.; Thomson General Eléctrica; Cedosa; Electa; Setelsa; Madrid

• Year
• 1986 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 316803

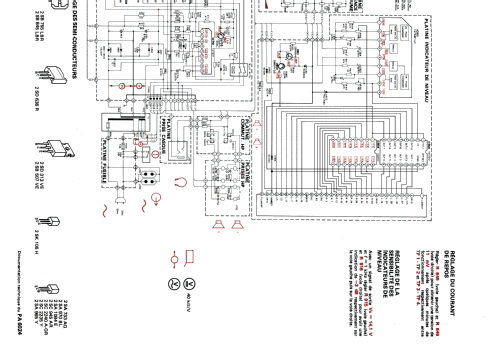

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 41

• Semiconductors
• 2SA733 2SA970 2SA1084 2SC945 2SC2240 2SC2235 2SA965 2SK105 2SD313 2SB507 2SD636 2SB755 2SD845 TA7317 TA7318 VC5022 HA12010 NJM4560

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - only for Earphone!

• Power out
• 128 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: Amplificador Estereofónico A-6001 - Thomson Española S.A.; Thomson

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 440 x 70 x 285 mm / 17.3 x 2.8 x 11.2 inch

• Notes

• Thomson Española S.A. Pre-amplificador amplificador  estereofónico A-6001

  Listado un único semiconductor por tipo.

  En el esquema se  menciona erróneamente un 2SB845 en lugar del correcto, mencionado en componentes, 2SD845.

• Net weight (2.2 lb = 1 kg)
• 7.5 kg / 16 lb 8.3 oz (16.52 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
