• Country
• Spain

• Manufacturer / Brand
• Thomson Española S.A.; Thomson General Eléctrica; Cedosa; Electa; Setelsa; Madrid

• Year
• 1980 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 317755

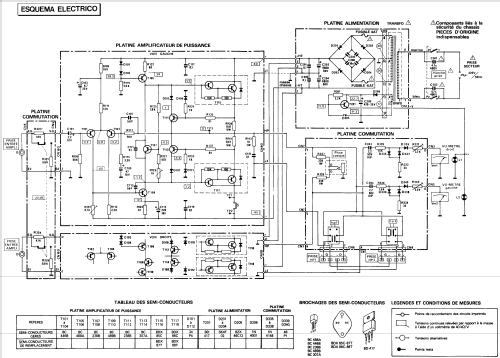

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 23

• Semiconductors
• BC446 BC488 BC238 BC489 BC307 BDX85 BDX86 BD417 34P4 46P1 SK4F4 1N4001 1N4148 Diode_LED

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Power out
• 80 W (undistorted)

• from Radiomuseum.org
• Model: Amplificador Estereofónico AP-801 - Thomson Española S.A.; Thomson

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 420 x 94 x 315 mm / 16.5 x 3.7 x 12.4 inch

• Notes

• Thomson Española S.A. Amplificador Estereofónico AP-801

  Conjunta con el preamplificador PA-801

  Listado un único semiconductor por tipo.

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.

• Other Models

• Here you find 176 models, 80 with images and 107 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Thomson Española S.A.; Thomson General Eléctrica; Cedosa; Electa; Setelsa; Madrid
