• Year
  • 1976 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 317513

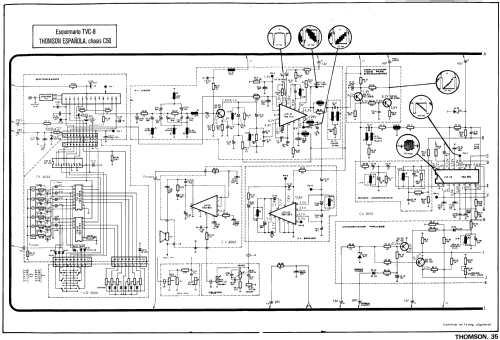

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superhet with RF-stage; ZF/IF 38900 kHz
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • from Radiomuseum.org
  • Model: Ch= C50 - Thomson Española S.A.; Thomson
  • Shape
  • Chassis only or for «building in»
  • Notes
  • Thomson Española S.A., Chasis televisor color Ch= C50

    Chasis de TV color para TRC de 22" o 27"

    Sintonizador de VHF/UHF Copresa ELC2000S con seis presintonías por sensores.



  • Mentioned in
  • Esquemario TV Color REDE, TVC VIII
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
