• Year
  • 1986 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 316999

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Power out
  • 70 W (undistorted)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Minicadena Estereofónica C-2000 - Thomson Española S.A.; Thomson
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Notes
  • Thompson Española S.A. Mini Cadena Estereofónica C-2000

    2 x Bafle con dos altavoces, graves de 130 mm y tweeter de 67x67 mm. Z=8 Ω.

    Cassette para cinta normal, cromo y metal.

  • Net weight (2.2 lb = 1 kg)
  • 12.8 kg / 28 lb 3.1 oz (28.194 lb)

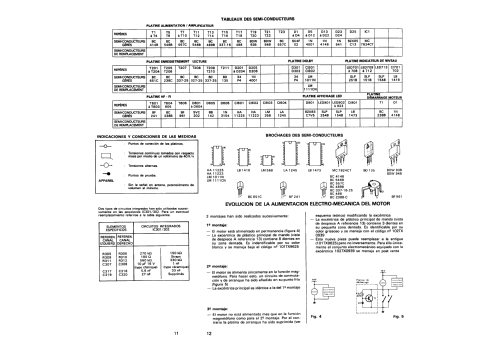

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
