Control Remoto CR-1001

Thomson Española S.A.; Thomson General Eléctrica; Cedosa; Electa; Setelsa; Madrid

Data
Forum
Pictures
Collections

  • Year
  • 1981 ??
  • Category
  • Miscellaneous (Other, Various) - see notes
  • Radiomuseum.org ID
  • 318088

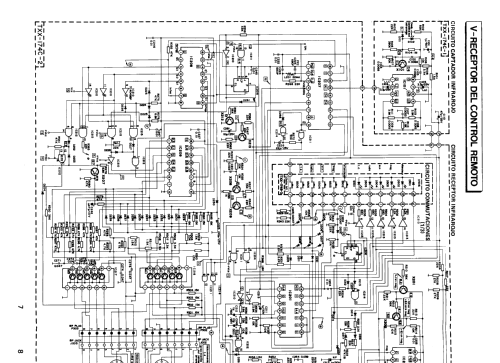

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Details
  • Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 (receptor) & AA: 6 x 1,5 (emisor) Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Control Remoto CR-1001 - Thomson Española S.A.; Thomson
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 440 x 76 x 245 mm / 17.3 x 3 x 9.6 inch
  • Notes

  • Thomson Española S.A. Control Remoto por Infrarrojos CR-1001

    Sistema de control remoto por infrarrojos para control de cadena HI-FI:

    Receptor:

    • Peso y medidas de la ficha.
    • Entradas para Radio, Magnetófono, Tocadiscos y Aux.

    Emisor:

    • peso 0,3 kg. medidas 153x80x38 mm.
  • Net weight (2.2 lb = 1 kg)
  • 2.8 kg / 6 lb 2.7 oz (6.167 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
