• Year
  • 1983 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 317163

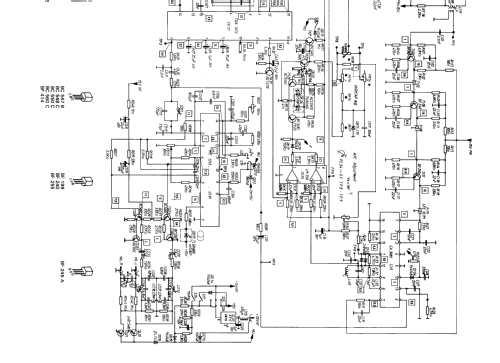

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 19
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: MT-180E - Thomson Española S.A.; Thomson
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 440 x 77 x 248 mm / 17.3 x 3 x 9.8 inch
  • Notes

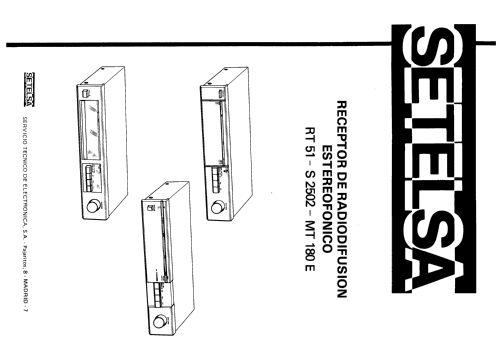

  • Thompson Española S.A. Receptor Estereofónico MT-180E

    Mismo modelo con diferente frontral: RT-51 y S-2502

    Semiconductores listados una vez por tipo

    Véase modelo similar SABA MT-180

  • Net weight (2.2 lb = 1 kg)
  • 2.6 kg / 5 lb 11.6 oz (5.727 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
