• Year
  • 1983 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 318138

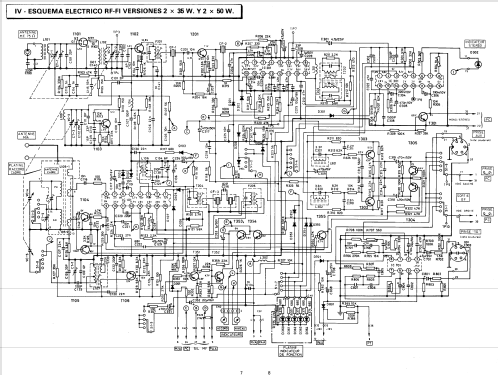

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 44
  • Main principle
  • Superhet with RF-stage; ZF/IF 460/10700 kHz
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 100 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Sintonizador Estereofónico con Amplificador R-5001 - Thomson Española S.A.; Thomson
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 440 x 136 x 290 mm / 17.3 x 5.4 x 11.4 inch
  • Notes
  • Thomson Española, S.A. Sintonizador Estéreofónico con Amplificador R-3501

    Listado un único semiconductor por tipo

  • Net weight (2.2 lb = 1 kg)
  • 11 kg / 24 lb 3.7 oz (24.229 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
