• Country
• Spain

• Manufacturer / Brand
• Thomson Española S.A.; Thomson General Eléctrica; Cedosa; Electa; Setelsa; Madrid

• Year
• 1983 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 317279

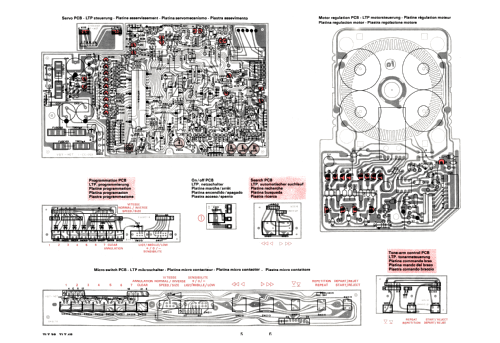

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 39

• Semiconductors
• 2SA733 2SC2001 2SC1815 2SB647 2SD667 2SC945 2SA1015 2SK68 2SB536 2SD381 MP1002 LM324 CD4069 CD4001 NJM4558 CD4528 TC9142

• Main principle
• Superheterodyne (common); ZF/IF 450/10700 kHz

• Wave bands
• - without

• Details
• Record Player (not changer); Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Platina Tocadiscos Tangencial TLT-48 - Thomson Española S.A.; Thomson

• Shape
• Book-shelf unit.

• Notes

• Thomson Española S.A. Platina Tocadiscos Tangencial TLT-48

  Semiconductores listados una vez por tipo

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.

• Other Models

• Here you find 176 models, 80 with images and 107 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Thomson Española S.A.; Thomson General Eléctrica; Cedosa; Electa; Setelsa; Madrid
