Videotext Decoder DVT2012
Thomson (marque), Thomson-Houston (CFTH); Paris
- Country
- France
- Manufacturer / Brand
- Thomson (marque), Thomson-Houston (CFTH); Paris
- Year
- 1990 ??
- Category
- Signal Processing and Computing
- Radiomuseum.org ID
- 372143
Platine mit Halter
Leiterbahnseite der Platine.
Karton, Platine und Lageplan
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 28
- Main principle
- Special principle (see notes)
- Wave bands
- - without
- Power type and voltage
- Powered by external power supply or a main unit. / DC7V + DC13 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Printed Circuit Board
- from Radiomuseum.org
- Model: Videotext Decoder DVT2012 - Thomson marque, Thomson-
- Dimensions (WHD)
- 165 x 97 x 19 mm / 6.5 x 3.8 x 0.7 inch
- Notes
-
Videotext Nachrüstmodul für Chassis Thomson IKC2 welches in Farbfernsehgeräten von Nordmende, Saba und Telefunken genutzt wurde.
- Net weight (2.2 lb = 1 kg)
- 0.113 kg / 0 lb 4 oz (0.249 lb)
- Mentioned in

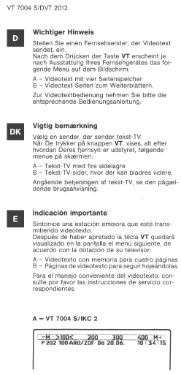

- -- Original-techn. papers.
- Author
- Model page created by Heribert Jung. See "Data change" for further contributors.
