Videotext Decoder DVT6601
Thomson (marque), Thomson-Houston (CFTH); Paris
- Country
- France
- Manufacturer / Brand
- Thomson (marque), Thomson-Houston (CFTH); Paris
- Year
- 1992 ??
- Category
- Signal Processing and Computing
- Radiomuseum.org ID
- 372144
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Main principle
- Special principle (see notes)
- Wave bands
- - without
- Power type and voltage
- Powered by external power supply or a main unit. / DC9V + DC13 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Printed Circuit Board
- from Radiomuseum.org
- Model: Videotext Decoder DVT6601 - Thomson marque, Thomson-
- Dimensions (WHD)
- 97 x 73 x 18 mm / 3.8 x 2.9 x 0.7 inch
- Notes
-

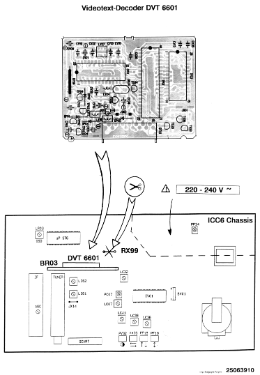

Videotext Nachrüstmodul für Chassis Thomson ICC6 welches in Farbfernsehgeräten von Nordmende, Saba und Telefunken genutzt wurde.
- Net weight (2.2 lb = 1 kg)
- 0.470 kg / 1 lb 0.6 oz (1.035 lb)
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Heribert Jung. See "Data change" for further contributors.
