Horizontal Output Transformer FLY-25

Horizontal Output Transformer FLY-25; Thordarson Electric (ID = 2498366) Radio part
Horizontal Output Transformer FLY-25; Thordarson Electric (ID = 2498339) Radio part Horizontal Output Transformer FLY-25; Thordarson Electric (ID = 2498340) Radio part
Use red slider bar for more.

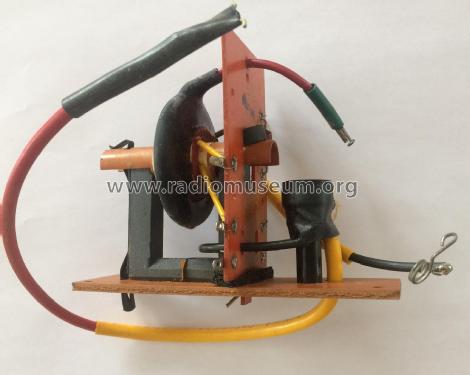

Horizontal Output Transformer FLY-25; Thordarson Electric (ID = 2498339) Radio part
Thordarson Electric: Horizontal Output Transformer FLY-25 [Radio part] ID = 2498339 1400x1115
Select picture or schematic to display from thumbnails on the right and click for download.
For model Horizontal Output Transformer FLY-25, Thordarson Electric Mfg. Co. ; Chicago (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Thordarson Electric Mfg. Co. ; Chicago (IL)
Year: 1965 ?? Category: Radio part (not a module)
Wave bands - without
Details
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Horizontal Output Transformer FLY-25 - Thordarson Electric Mfg. Co. ;
Material Various materials
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 4.75 x 3.5 x 2 inch / 121 x 89 x 51 mm
Notes

Model is Thordarson Horizontal Output Transformer exact replacement for various models of  Crosley, Hallicrafters, Silvertone, Meteor, Sentinel, and Airline Television receivers. (See Data Sheet for specific models). The model has 13kV no-load voltage output, and matches with Thordarson 70 degree yoke Y-11, and 90 degree yoke Y-16. These models were distributed in Canada by GTE Sylvania Canada Ltd., Montreal PQ.

Net weight (2.2 lb = 1 kg) 0 lb 8 oz (0.5 lb) / 0.227 kg
Mentioned in - - Manufacturers Literature (Thordarson Data Sheet No. J-485F)

Model page created by Jack Sorensen. See "Data change" for further contributors.
