• Country
• Switzerland

• Manufacturer / Brand
• Thorens SA; St. Croix

• Year
• 1949–1952 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 13735

• • alternative name: Thorens Inc., N.Y.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6BE6 6BA6 6AL5 6SH7 EM4 6V6 80

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110/250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: New Century Sphynx - Thorens SA; St. Croix

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 570 x 998 x 250 mm / 22.4 x 39.3 x 9.8 inch

• Notes
• Lautsprecher-Möbel

• Price in first year of sale
• 865.00 SFr

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)

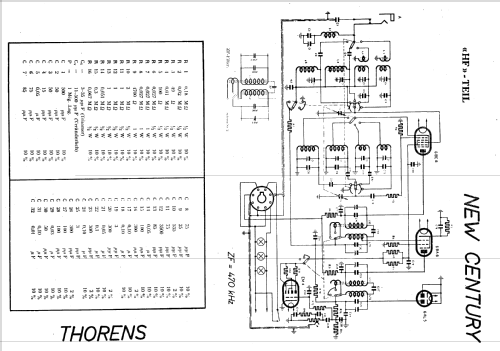

• -- Schematic

• Other Models

• Here you find 221 models, 192 with images and 44 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
