AT410

AT410; Thorens; Lahr (ID = 282704) Radio AT410; Thorens; Lahr (ID = 282706) Radio
AT410; Thorens; Lahr (ID = 2611581) Radio AT410; Thorens; Lahr (ID = 2611582) Radio
Use red slider bar for more.
AT410; Thorens; Lahr (ID = 282704) Radio
Thorens; Lahr: AT410 [Radio] ID = 282704 900x451

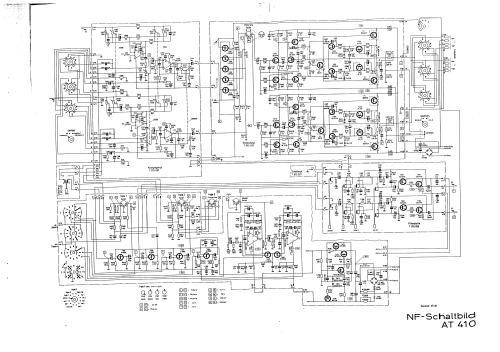

Select picture or schematic to display from thumbnails on the right and click for download.
For model AT410, Thorens; Lahr

Country:  Germany
Manufacturer / Brand:  Thorens; Lahr
Year: 1976–1979 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 100 W (undistorted)
from Radiomuseum.org Model: AT410 - Thorens; Lahr
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 435 x 125 x 390 mm / 17.1 x 4.9 x 15.4 inch
Net weight (2.2 lb = 1 kg) 11.9 kg / 26 lb 3.4 oz (26.211 lb)
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Historische Radios Band IV (123B)
Literature/Schematics (1) Funkschau ((21/1978, S. 1002))
Literature/Schematics (2) Funk-Technik (FT) (22/1975, S. 740 / Neuvorstellung (Frühjahr 76))
Picture reference Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.


All listed radios etc. from Thorens; Lahr
Here you find 23 models, 21 with images and 6 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
