Precision Power Supply PL310

Precision Power Supply PL310; Thurlby Thandar (ID = 2597104) Equipment

Precision Power Supply PL310; Thurlby Thandar (ID = 2597105) Equipment

Precision Power Supply PL310; Thurlby Thandar (ID = 2597106) Equipment

Precision Power Supply PL310; Thurlby Thandar (ID = 2597108) Equipment

Precision Power Supply PL310; Thurlby Thandar (ID = 2597109) Equipment

Precision Power Supply PL310; Thurlby Thandar (ID = 2597110) Equipment

Precision Power Supply PL310; Thurlby Thandar (ID = 2597111) Equipment

Precision Power Supply PL310; Thurlby Thandar (ID = 2597112) Equipment

Precision Power Supply PL310; Thurlby Thandar (ID = 2597113) Equipment

Precision Power Supply PL310; Thurlby Thandar (ID = 2597114) Equipment
Precision Power Supply PL310; Thurlby Thandar (ID = 2594519) Equipment
Use red slider bar for more.
Precision Power Supply PL310; Thurlby Thandar (ID = 2594519) Equipment
Thurlby Thandar: Precision Power Supply PL310 [Equipment] ID = 2594519 1400x1509
Select picture or schematic to display from thumbnails on the right and click for download.
For model Precision Power Supply PL310, Thurlby Thandar Instruments

Country:  Great Britain (UK)
Manufacturer / Brand:  Thurlby Thandar Instruments
alternative name

Thandar Electronics || TTI
Year: 1988 ?? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) 8:
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 120; 220; 240 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Precision Power Supply PL310 - Thurlby Thandar Instruments
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 155 x 170 x 265 mm / 6.1 x 6.7 x 10.4 inch
Notes
  • 0-32 volts constant voltage
  • 0.1-1 Ampere constant current
  • Switchable output



  • 0-32 Volt Konstantspannung
  • 0,1-1 Amper Konstantstrom
  • Schaltbarer Ausgang



Net weight (2.2 lb = 1 kg) 3.6 kg / 7 lb 14.9 oz (7.93 lb)

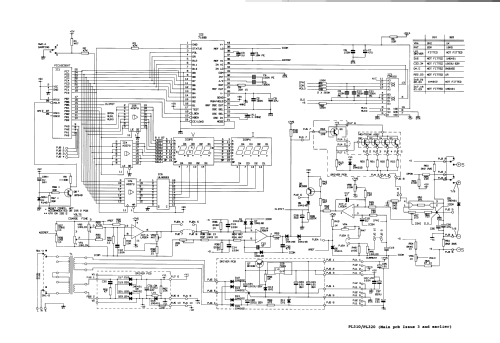

Literature/Schematics (1) - - Manufacturers Literature (Datasheet)

Model page created by Günter Kudicke. See "Data change" for further contributors.
