• Year
  • 1966 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 176104

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz; 3 AF stage(s)
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Dry Batteries / 4 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

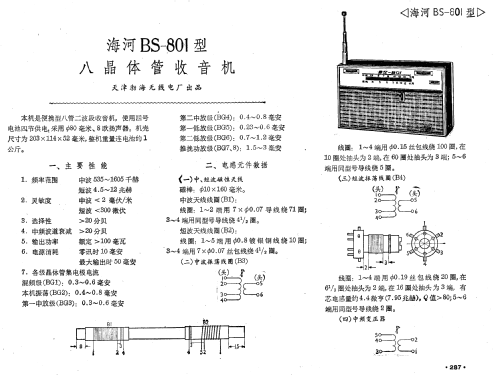

  • Model: Hai He 海河 BS-801 - Tianjin 天津渤海无线电厂
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 203 x 114 x 52 mm / 8 x 4.5 x 2 inch
  • Notes
  • The model Hai He 海河 BS-801 has broadcast (as all at that time from 535 - 1605 kHz) and SW 4.5 - 12 MHz.
