• Country
• United States of America (USA)

• Manufacturer / Brand
• Timmons Radio Products Corp.; Philadelphia, PA

• Year
• 1926 ?

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 318334

• Number of Tubes
• 1

• Valves / Tubes
• PR216A

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 105-120 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

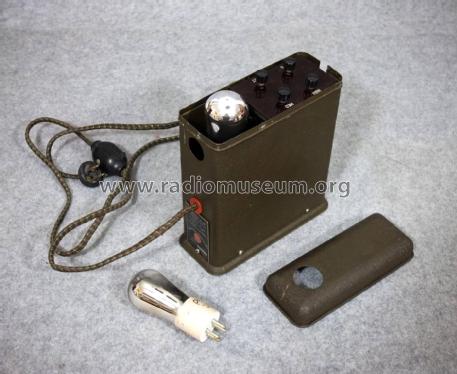

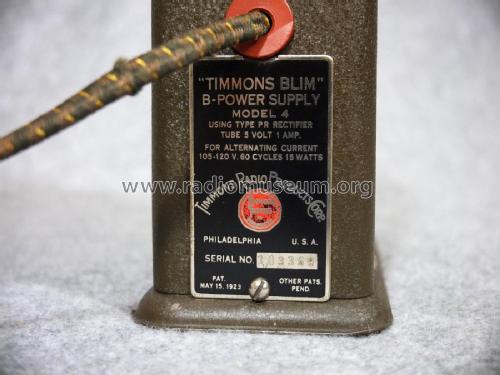

• Model: Timmons Blim B- Power Supply Model 4 - Timmons Radio Products Corp.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 70 x 180 x 200 mm / 2.8 x 7.1 x 7.9 inch

• Notes

• "Fixed efficency from permanent powerful B- supply"

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Price in first year of sale
• 47.50 USD

• Author
• Model page created by Peter Kahlich. See "Data change" for further contributors.

• Other Models

• Here you find 7 models, 7 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Timmons Radio Products Corp.; Philadelphia, PA
