• Country
• Czechoslovakia

• Manufacturer / Brand
• Titan, ES radiotovarna, Praha

• Year
• 1936 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 114185

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• AF7 PP416 PV495 or E424N B443S 1805

• Main principle
• TRF with regeneration

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org

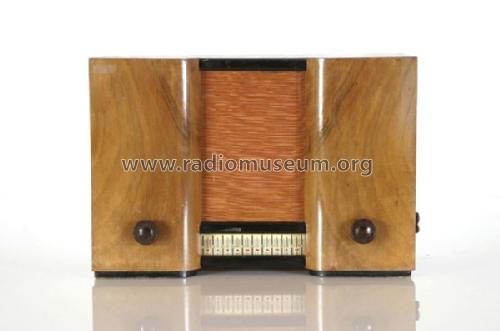

• Model: 935 - Titan, ES radiotovarna, Praha

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 380 x 260 x 190 mm / 15 x 10.2 x 7.5 inch

• Notes

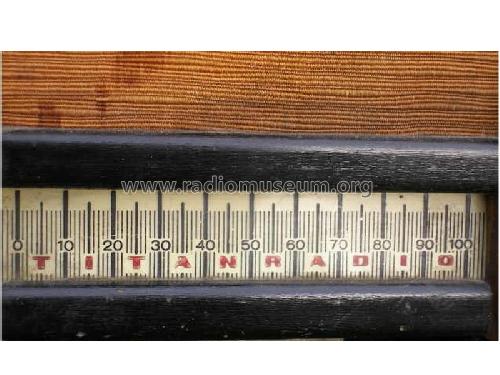

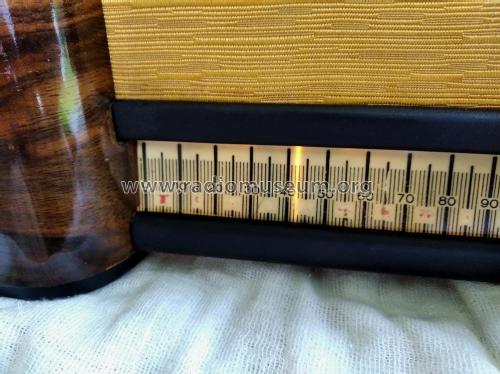

• Skala ist unterteilt von 0 bis 100 in Zehnerschritten.

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
