VV

VV; Titan, ES (ID = 718719) Radio
VV; Titan, ES (ID = 1807626) Radio VV; Titan, ES (ID = 1425312) Radio
VV; Titan, ES (ID = 285058) Radio VV; Titan, ES (ID = 285059) Radio
VV; Titan, ES (ID = 285060) Radio VV; Titan, ES (ID = 314474) Radio
VV; Titan, ES (ID = 536552) Radio VV; Titan, ES (ID = 692587) Radio
VV; Titan, ES (ID = 1425313) Radio VV; Titan, ES (ID = 1425314) Radio
Use red slider bar for more.

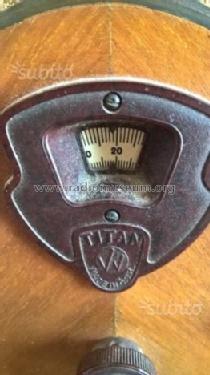

VV; Titan, ES (ID = 1807626) Radio
Titan, ES: VV [Radio] ID = 1807626 933x1234
Select picture or schematic to display from thumbnails on the right and click for download.
For model VV, Titan, ES radiotovarna, Praha

Country:  Czechoslovakia
Manufacturer / Brand:  Titan, ES radiotovarna, Praha
Year: 1933/1934 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: E424N C443 506
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 127/220 Volt
Loudspeaker Magnetic loudspeaker (reed) of high quality (4 magnet poles).
Power out
from Radiomuseum.org Model: VV - Titan, ES radiotovarna, Praha
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 273 x 386 x 160 mm / 10.7 x 15.2 x 6.3 inch
Notes In der Orignaldokumentation des Herstellers werden folgende Röhrenbestückungsvarianten genannt: Tungsram: AG495 L414 V430, Sator: NU41 E4 EG406 Philips: E424N B409 1803 Telefunken: REN904 RE134 RGN564, 2 Kurzwellen und Mittelwelle, 2 Antenneneingänge, 2 Buchsen für Grammofon. Im Gerät befindet sich ein Blockkondensator von Always, der insgesamt 5 Kondensatoren vereint. Der Preis von 650 Kc bezieht sich auf das funktionsfähige Gerät 1934
Net weight (2.2 lb = 1 kg) 6.2 kg / 13 lb 10.5 oz (13.656 lb)
Price in first year of sale 650.00 Kc
Collectors' prices
External source of data Radiojournal (CZ) 5+6/1990

Model page created by Gabriel Toth. See "Data change" for further contributors.
