• Year
  • 1939
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 125360

 Technical Specifications

  • Number of Tubes
  • 9
  • Valves / Tubes
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • Loudspeaker
  • Presumably Dynamic Loudspeaker (moving coil) / Ø 25 cm = 9.8 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

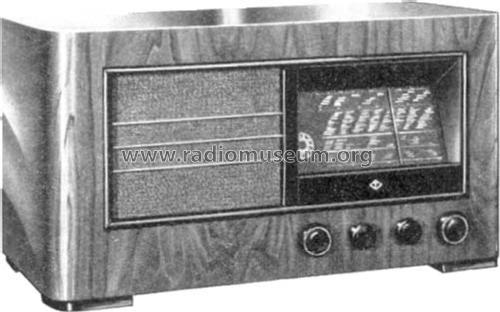

  • Model: Atlantic 36V - Tjerneld Radio AB; Stockholm
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 650 x 362 x 314 mm / 25.6 x 14.3 x 12.4 inch
  • Notes
  • Variable selectivity. Push-pull audio.
  • Price in first year of sale
  • 415.00 SEK
  • Source of data
  • -- Original prospect or advert
  • Author
  • Model page created by Anders Söderström. See "Data change" for further contributors.
