Analog Multimeter TMK-500

Analog Multimeter TMK-500; TMK, Tachikawa Radio (ID = 1447853) Equipment

Analog Multimeter TMK-500; TMK, Tachikawa Radio (ID = 1447854) Equipment
Analog Multimeter TMK-500; TMK, Tachikawa Radio (ID = 1447643) Equipment Analog Multimeter TMK-500; TMK, Tachikawa Radio (ID = 1900807) Equipment
Analog Multimeter TMK-500; TMK, Tachikawa Radio (ID = 1900808) Equipment Analog Multimeter TMK-500; TMK, Tachikawa Radio (ID = 2547614) Equipment
Analog Multimeter TMK-500; TMK, Tachikawa Radio (ID = 2547615) Equipment Analog Multimeter TMK-500; TMK, Tachikawa Radio (ID = 2547616) Equipment
Analog Multimeter TMK-500; TMK, Tachikawa Radio (ID = 2547617) Equipment
Use red slider bar for more.
Analog Multimeter TMK-500; TMK, Tachikawa Radio (ID = 1447643) Equipment
TMK, Tachikawa Radio: Analog Multimeter TMK-500 [Equipment] ID = 1447643 681x933

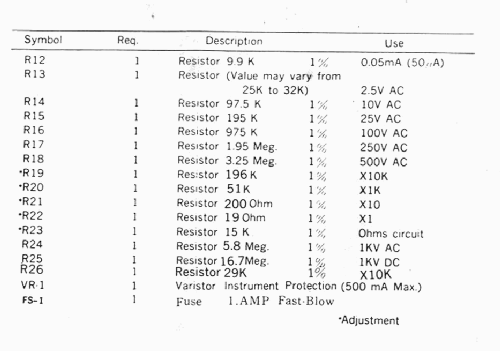

Select picture or schematic to display from thumbnails on the right and click for download.
For model Analog Multimeter TMK-500, TMK, Tachikawa Radio; Miyatani

Country:  Japan
Manufacturer / Brand:  TMK, Tachikawa Radio; Miyatani
Year: 1968 ? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Dry Batteries / AA: 1 x 1.5 & 1 x 15 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Analog Multimeter TMK-500 - TMK, Tachikawa Radio; Miyatani
Material Bakelite case
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 85 x 160 x 70 mm / 3.3 x 6.3 x 2.8 inch
Notes

Sensitivity: 30 kΩ/V DC; 15 kΩ/V AC.

33 µA full scale movement.

DCV from .005 to 1.000 Volts (in 8 scales  0.25, 1, 2.5, 10, 25, 100, 250, 1000 Vdc).

ACV from  .05 to 1000 Volts (in 8 scales  0.05, 2.5, 10, 25, 100, 250, 500, 1000 Vac).

DCA from  1 µA to 12 A (in 5 ranges .05, 5, 50, 500, 12 A).

Resistance measurement from 5 to 6 MΩ (in 5 ranges x1, x10, x1k, x10k).

Audio output voltage measurement.

Audio power level measurement from -20 to 56dB on 600 Ω line.

Audible low resistance indication below about 2 Ω.

Net weight (2.2 lb = 1 kg) 0.630 kg / 1 lb 6.2 oz (1.388 lb)
