• Year
  • 1975 ??
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 173269

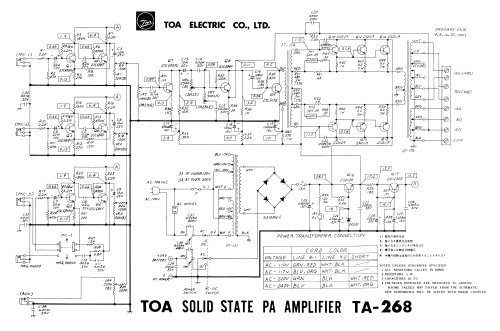

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 17
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Line / Storage batteries (perhaps also batteries) / 100-240 / DC 24 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 100 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org

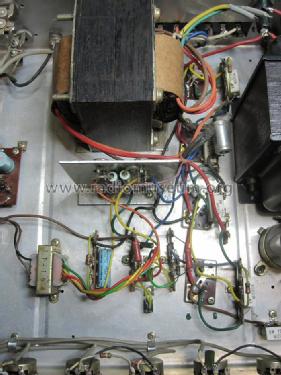

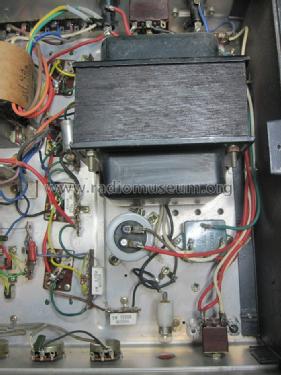

  • Model: TA-268 - Toa Electric Co., Ltd. 東亜;
  • Shape
  • Book-shelf unit.
  • Notes
  • Public Adress Amplifier 100W RMS, 4-8-16 Ohms, 70V (50 Ohms) and 100V (100 Ohms). Power supply 24V Battery and AC 100-240V. 3 Mic. inputs 50 KOhms, one magnetic phono input 50KOhms, one aux. input 500 KOhms.
  • Literature/Schematics (1)
  • -- Original-techn. papers.
