9 Transistor MZK BC-Telecon TMC-401

Toa Musen Company Ltd. (Telecon); Tokyo

  • Year
  • 1963 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 200322

 Technical Specifications

  • Number of Transistors
  • 9
  • Semiconductors
  • Main principle
  • Transceiver
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Dry Batteries / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
  • Power out
  • 0.15 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 9 Transistor MZK BC-Telecon TMC-401 - Toa Musen Company Ltd. Telecon
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 3 x 6 x 1.5 inch / 76 x 152 x 38 mm
  • Notes
  • MZK B.C-Telecon 9 Transistor TMC-401.

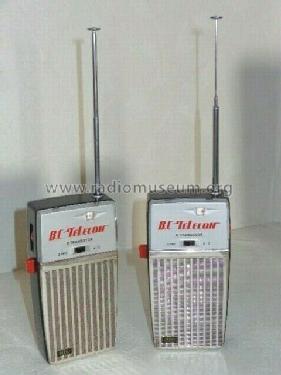

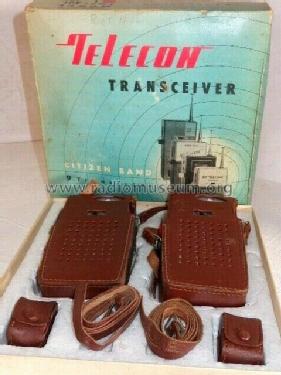

    Combined AM-CB radio with 27 MHz single channel Xtal controlled AM CB transceiver, 40 inch telescopic antenna.

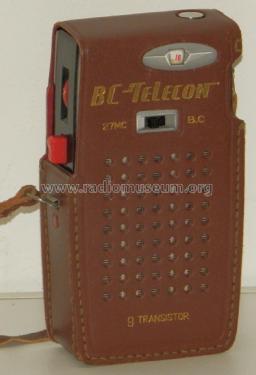

    ABS cabinet, leather case , front speaker grill silver metal.

  • Net weight (2.2 lb = 1 kg)
  • 0.5 kg / 1 lb 1.6 oz (1.101 lb)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
