Èlektronika {Электроника} 302-1

Èlektronika {Электроника} 302-1; TochMash Moskow (ID = 2036339) R-Player
Use red slider bar for more.
Èlektronika {Электроника} 302-1; TochMash Moskow (ID = 2036339) R-Player

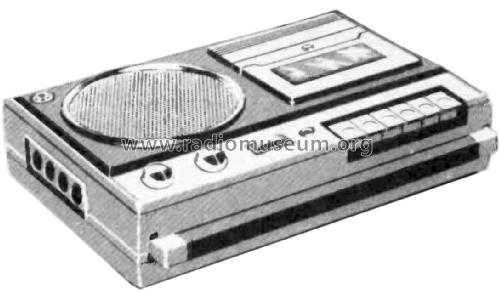

TochMash Moskow: Èlektronika {Электроника} 302-1 [R-Player] ID = 2036339 1088x634
Select picture or schematic to display from thumbnails on the right and click for download.
For model Èlektronika {Электроника} 302-1, TochMash Moskow mashine Works:
Artikel in "Hands on Electronics", Ausgabe 12/1987

Country:  Soviet Union
Manufacturer / Brand:  TochMash Moskow mashine Works
Year: 1984 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220/127, 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Èlektronika {Электроника} 302-1 - TochMash Moskow mashine Works
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 318 x 225 x 85 mm / 12.5 x 8.9 x 3.3 inch
Notes Cassette tape recorder, tone control, VU meter, LED indicator.
External AC 220V power supply block.
Net weight (2.2 lb = 1 kg) 3.2 kg / 7 lb 0.8 oz (7.048 lb)
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.
