• Country
• Japan

• Manufacturer / Brand
• Tokai Wireless Co.,Ltd., Tokyo

• Year
• 1969

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 159939

• • Brand: Million

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors
• 2SA234 2SC150 2SA352 2SA234 2SC608 2SA12 2SC281 2SA12 2SB75 2SB370 2SB370 2SB75 2SB77

• Main principle
• Transceiver; ZF/IF 455 kHz

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Storage and/or dry batteries / 12 Volt

• Power out
• 0.4 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: CB-Mobilfunkgerät PW-200G - Tokai Wireless Co.,Ltd., Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 150 x 40 x 145 mm / 5.9 x 1.6 x 5.7 inch

• Notes

• Betriebsart: AM
  2 Kanäle bequarzt im 27 MHz-Band (m11)
  Mikrofon mit eingebautem Lautsprecher
  Anschluß für: Kopfhörer, externen Lautsprecher, Antenne und Stromversorgung
  Sender-Ausgangsleistung 4 Watt

  FTZ Nr. K-91/69

• Net weight (2.2 lb = 1 kg)
• 1.3 kg / 2 lb 13.8 oz (2.863 lb)

• Literature/Schematics (1)

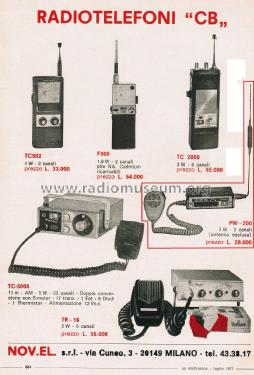

• Selezione Radio-TV Marzo 1972

• Literature/Schematics (2)
• Schematic

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
