Transistor 8 G-810

Transistor 8 G-810; Tokai Wireless Co., (ID = 895491) Radio

Transistor 8 G-810; Tokai Wireless Co., (ID = 1205437) Radio
Transistor 8 G-810; Tokai Wireless Co., (ID = 2330683) Radio Transistor 8 G-810; Tokai Wireless Co., (ID = 2330685) Radio
Transistor 8 G-810; Tokai Wireless Co., (ID = 2330684) Radio Transistor 8 G-810; Tokai Wireless Co., (ID = 379300) Radio
Transistor 8 G-810; Tokai Wireless Co., (ID = 379303) Radio Transistor 8 G-810; Tokai Wireless Co., (ID = 379301) Radio
Transistor 8 G-810; Tokai Wireless Co., (ID = 379304) Radio Transistor 8 G-810; Tokai Wireless Co., (ID = 770867) Radio
Transistor 8 G-810; Tokai Wireless Co., (ID = 770868) Radio Transistor 8 G-810; Tokai Wireless Co., (ID = 770869) Radio
Use red slider bar for more.
Transistor 8 G-810; Tokai Wireless Co., (ID = 2330683) Radio
Tokai Wireless Co.,: Transistor 8 G-810 [Radio] ID = 2330683 1381x991
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transistor 8 G-810, Tokai Wireless Co.,Ltd., Tokyo

Country:  Japan
Manufacturer / Brand:  Tokai Wireless Co.,Ltd., Tokyo
Brand

Million
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out
from Radiomuseum.org Model: Transistor 8 G-810 - Tokai Wireless Co.,Ltd., Tokyo
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 115 x 75 x 34 mm / 4.5 x 3 x 1.3 inch
Notes

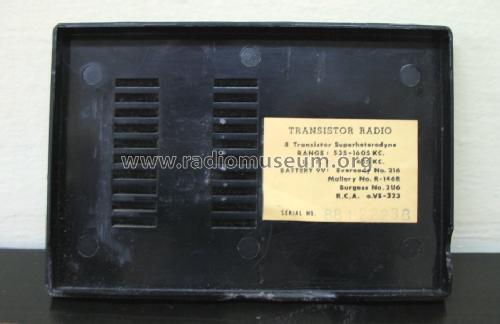

Tokay Transistor 8, rear cover labeled G-810. Suitable brown leather carrying case known.

See also most similar model Vesper Transistor 8.

Price in first year of sale 55.00 CHF

Model page created by Thomas Witkenkamp. See "Data change" for further contributors.



All listed radios etc. from Tokai Wireless Co.,Ltd., Tokyo
Here you find 78 models, 72 with images and 22 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
