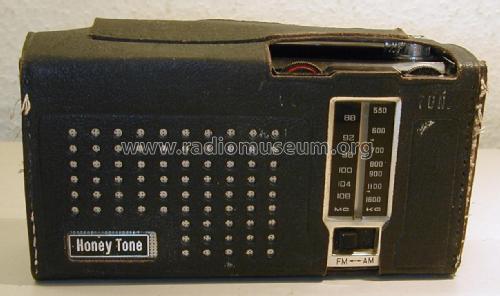

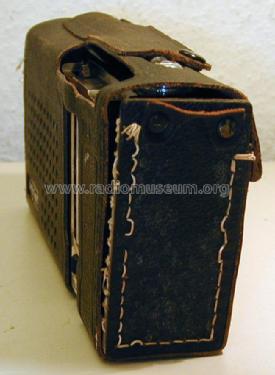

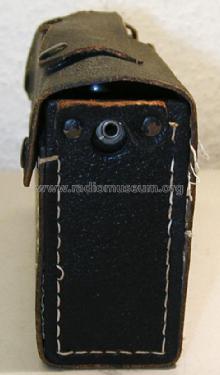

FM AM 9 Transistor G-1110

Honeytone (Honey Tone); San Francisco, CA

  • Year
  • 1966 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 306799

 Technical Specifications

  • Number of Transistors
  • 9
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Dry Batteries / UM3: 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.1 cm = 2.4 inch
  • Power out
  • 0.3 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: FM AM 9 Transistor G-1110 - Honeytone Honey Tone; San
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 160 x 84 x 36 mm / 6.3 x 3.3 x 1.4 inch
  • Net weight (2.2 lb = 1 kg)
  • 0.5 kg / 1 lb 1.6 oz (1.101 lb)
  • Author
  • Model page created by Eckhard Wegner. See "Data change" for further contributors.
