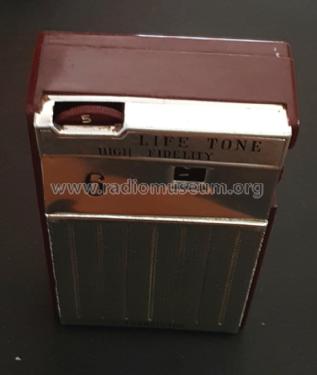

Life Tone AM 6 Transistor NTR-601G (Japan 513)
Tokai Wireless Co.,Ltd., Tokyo
- Country
- Japan
- Manufacturer / Brand
- Tokai Wireless Co.,Ltd., Tokyo
- Year
- 1965 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 239410
-
- Brand: Million
Eigene Sammlung
Eigene Sammlung
- Number of Transistors
- 6
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
- Power out
- 0.2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Life Tone AM 6 Transistor NTR-601G - Tokai Wireless Co.,Ltd., Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 68 x 109 x 32 mm / 2.7 x 4.3 x 1.3 inch
- Notes
-
AM-Portable mit Ohrhöreranschluss über Klinkenbuchse. Ferritantenne.
Transistoren ohne Bezeichnung, nur mit Farbkennzeichnungen.
Made in Japan 513
- Net weight (2.2 lb = 1 kg)
- 0.150 kg / 0 lb 5.3 oz (0.33 lb)
- Author
- Model page created by Karl-Heinz Kornath. See "Data change" for further contributors.
