Sprechfunkgerät TC-3006D

Tokai Wireless Co.,Ltd., Tokyo

  • Year
  • 1971
  • Category
  • Citizen Band Equipment
  • Radiomuseum.org ID
  • 245551
    • Brand: Million

 Technical Specifications

  • Number of Transistors
  • 15
  • Semiconductors
  • Main principle
  • Transceiver; ZF/IF 455 kHz
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage
  • Dry Batteries / 8 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Sprechfunkgerät TC-3006D - Tokai Wireless Co.,Ltd., Tokyo
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 90 x 230 x 60 mm / 3.5 x 9.1 x 2.4 inch
  • Notes
  • Handfunkgerät für das 27 MHz-CB-Band, 6 Kanäle (Steckquarze), Amplitudenmodulation, Tonruf, Sender-Eingangsleistung 2,5 W.

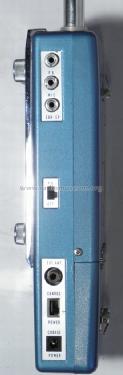

    Anschlüsse für externe Antenne, Stromversorgung, P.A., Mikrofon, Hörer.

    FTZ-Nr. K-120/71

  • Net weight (2.2 lb = 1 kg)
  • 1.2 kg / 2 lb 10.3 oz (2.643 lb)
  • Author
  • Model page created by Siegfried Droese. See "Data change" for further contributors.
