Super Phone TC-130G

Super Phone TC-130G; Tokai Wireless Co., (ID = 460206) Citizen

Super Phone TC-130G; Tokai Wireless Co., (ID = 460207) Citizen
Super Phone TC-130G; Tokai Wireless Co., (ID = 2220065) Citizen Super Phone TC-130G; Tokai Wireless Co., (ID = 1433486) Citizen
Super Phone TC-130G; Tokai Wireless Co., (ID = 228533) Citizen Super Phone TC-130G; Tokai Wireless Co., (ID = 228534) Citizen
Super Phone TC-130G; Tokai Wireless Co., (ID = 836887) Citizen Super Phone TC-130G; Tokai Wireless Co., (ID = 1433487) Citizen
Super Phone TC-130G; Tokai Wireless Co., (ID = 1433489) Citizen Super Phone TC-130G; Tokai Wireless Co., (ID = 1655391) Citizen
Super Phone TC-130G; Tokai Wireless Co., (ID = 1655392) Citizen Super Phone TC-130G; Tokai Wireless Co., (ID = 1655393) Citizen
Use red slider bar for more.
Super Phone TC-130G; Tokai Wireless Co., (ID = 2220065) Citizen
Tokai Wireless Co.,: Super Phone TC-130G [Citizen] ID = 2220065 1400x1866
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super Phone TC-130G, Tokai Wireless Co.,Ltd., Tokyo

Country:  Japan
Manufacturer / Brand:  Tokai Wireless Co.,Ltd., Tokyo
Brand

Million
Year: 1963–1968 ? Category: Citizen Band Equipment
Semiconductors (the count is only for transistors) 12: 2SA401 2SA80 2SA80 2SA12 2SA12 2SA82 2SB75 2SB75 2SA246 2SB77 2SB77 2SB75 1N60
Main principle Transceiver; ZF/IF 455 kHz
Wave bands Short Wave (SW only)
Details
Power type and voltage Storage and/or dry batteries / 8 x 1,5; 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Super Phone TC-130G - Tokai Wireless Co.,Ltd., Tokyo
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 90 x 210 x 40 mm / 3.5 x 8.3 x 1.6 inch
Notes Einkanal AM-Handfunksprechgerät, Anschluß für Zusatzantenne und separater Stromversorgung. Deutsche FTZ-Nr. K-411/63.
Net weight (2.2 lb = 1 kg) 1.6 kg / 3 lb 8.4 oz (3.524 lb)
Price in first year of sale 598.00 DM
Collectors' prices

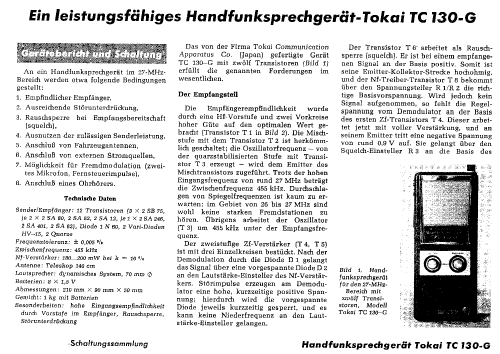

Mentioned in Funkschau (Heft 3, 1964 S 71 (177) ff. Gerätebeschreibung & Schaltung)

Model page created by a member from D. See "Data change" for further contributors.
