Windsor FR-601

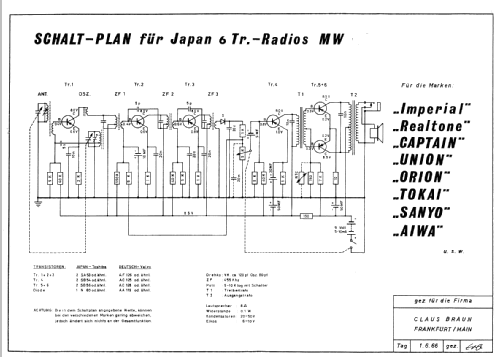

Windsor FR-601; Tokai Wireless Co., (ID = 895640) Radio
Windsor FR-601; Tokai Wireless Co., (ID = 1607581) Radio Windsor FR-601; Tokai Wireless Co., (ID = 1607580) Radio
Windsor FR-601; Tokai Wireless Co., (ID = 1607582) Radio
Use red slider bar for more.
Windsor FR-601; Tokai Wireless Co., (ID = 1607581) Radio
Tokai Wireless Co.,: Windsor FR-601 [Radio] ID = 1607581 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Windsor FR-601, Tokai Wireless Co.,Ltd., Tokyo

Country:  Japan
Manufacturer / Brand:  Tokai Wireless Co.,Ltd., Tokyo
Brand

Million
Year: 1960 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / PP3: 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Windsor FR-601 - Tokai Wireless Co.,Ltd., Tokyo
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Notes

One out of several similar FR-601 types: Honey Tone, Windsor, Pacific, Summit, Roberts.

Mentioned in Transistor Radios 1954-68 (p.106)

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.



All listed radios etc. from Tokai Wireless Co.,Ltd., Tokyo
Here you find 78 models, 72 with images and 22 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
