8 Transistor 888
Tokyo (brand)
- Country
- Japan
- Manufacturer / Brand
- Tokyo (brand)
- Year
- 1975 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 324896
- Number of Transistors
- 8
- Semiconductors
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 6LR61: 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 8 Transistor 888 - Tokyo brand
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 65 x 110 x 32 mm / 2.6 x 4.3 x 1.3 inch
- Notes
-

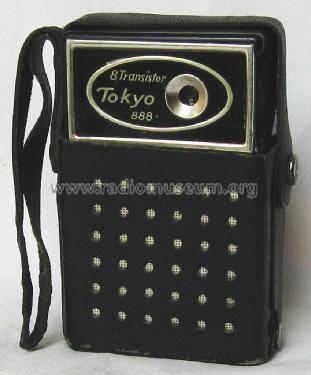

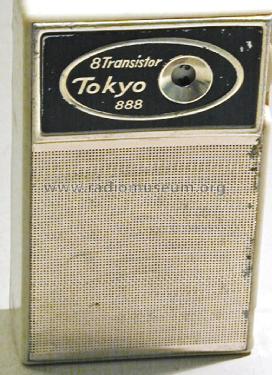

AM pocket receiver in leather case with tuning and 3.5mm earphone connection on the right; Volume / on / off left.
AM-Taschenempfänger im Lederetui mit Abstimmung und 3,5mm Ohrhöreranschluss rechts; Lautstärke/Ein/Aus links.
Empfangsbereich:
MW: 530 - 1600kHz.
- Net weight (2.2 lb = 1 kg)
- 0.175 kg / 0 lb 6.2 oz (0.385 lb)
- Author
- Model page created by Holger Struthoff. See "Data change" for further contributors.
- Other Models
-
Here you find 12 models, 12 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
