• Country
• Japan

• Manufacturer / Brand
• Tokyo Transistor Industry Co., LTD.; Tokyo

• Year
• 1964 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 290866

• • Brand: Candle

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• 2SA71 2SA71 2SA104 2SA104 2SA104 2SB175 2SB175 2SB172 2SB172 MA80 MA80 MA80

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

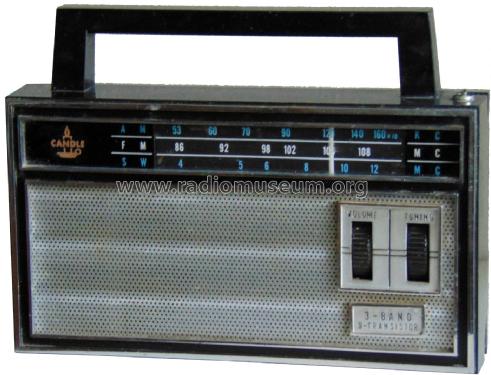

• Model: Candle 3-Band 9-Transistor VMS-925 - Tokyo Transistor Industry Co.,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 180 x 137 x 47 mm / 7.1 x 5.4 x 1.9 inch

• Notes

• AM: 530 to 1600 kHz
  SW: 3.9 to 12 MHz
  FM: 86 to 108 MHz

  Made in Japan 712

• Author
• Model page created by Danilo Crnogorac. See "Data change" for further contributors.
