Candle 3 Band All Transistor VMS-1218

Candle 3 Band All Transistor VMS-1218; Tokyo Transistor (ID = 1904552) Radio Candle 3 Band All Transistor VMS-1218; Tokyo Transistor (ID = 1904553) Radio
Candle 3 Band All Transistor VMS-1218; Tokyo Transistor (ID = 1904554) Radio Candle 3 Band All Transistor VMS-1218; Tokyo Transistor (ID = 1904555) Radio
Candle 3 Band All Transistor VMS-1218; Tokyo Transistor (ID = 1981931) Radio Candle 3 Band All Transistor VMS-1218; Tokyo Transistor (ID = 1981932) Radio
Use red slider bar for more.
Candle 3 Band All Transistor VMS-1218; Tokyo Transistor (ID = 1904552) Radio
Tokyo Transistor: Candle 3 Band All Transistor VMS-1218 [Radio] ID = 1904552 1400x1003
Select picture or schematic to display from thumbnails on the right and click for download.
For model Candle 3 Band All Transistor VMS-1218, Tokyo Transistor Industry Co., LTD.; Tokyo

Country:  Japan
Manufacturer / Brand:  Tokyo Transistor Industry Co., LTD.; Tokyo
Brand

Candle
Year: 1968 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7:
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Batteries / addl. power jack / C: 4 x 1.5; 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out
from Radiomuseum.org Model: Candle 3 Band All Transistor VMS-1218 - Tokyo Transistor Industry Co.,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 225 x 170 x 68 mm / 8.9 x 6.7 x 2.7 inch
Notes

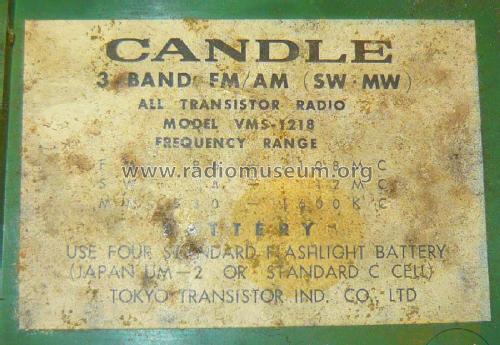

Candle 3 Band All Transistor (type VMS-1218);
SW: 4 - 12 MHz, dial light, tone high/low, AFC, green colored with chrome plated frame, earphones jack, ext. 6 VDC in, 7 section swivel telescopic antenna extends to 25.5".

Made in Japan.

Net weight (2.2 lb = 1 kg) 1 lb 0 oz (1 lb) / 0.454 kg
Collectors' prices
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Tokyo Transistor Industry Co., LTD.; Tokyo
Here you find 52 models, 46 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
