Candle All Transistor Clock Radio MC-631

Tokyo Transistor Industry Co., LTD.; Tokyo

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Tokyo Transistor Industry Co., LTD.; Tokyo

Year
1965 ??

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
256838

- Brand: Candle

Schematics

Candle All Transistor Clock Radio MC-631; Tokyo Transistor (ID = 1709215) Radio — Tokyo Transistor Candle All Transistor Clock Radio MC-631 (2)
Collection of Vitor M. Monteiro Santos.

Candle All Transistor Clock Radio MC-631; Tokyo Transistor (ID = 1709216) Radio — Tokyo Transistor Candle All Transistor Clock Radio MC-631 (2)
Collection of Vitor M. Monteiro Santos.

Candle All Transistor Clock Radio MC-631; Tokyo Transistor (ID = 1709217) Radio — Tokyo Transistor Candle All Transistor Clock Radio MC-631 (2)
Collection of Vitor M. Monteiro Santos.

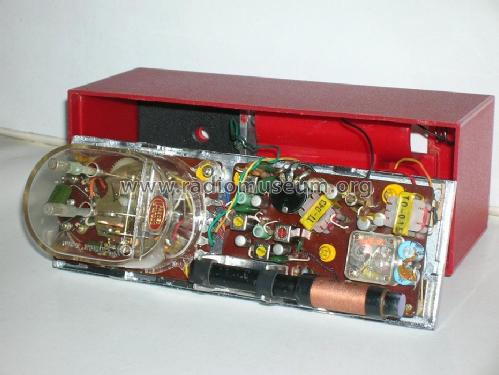

Candle All Transistor Clock Radio MC-631; Tokyo Transistor (ID = 1709218) Radio — Tokyo Transistor Candle All Transistor Clock Radio MC-631 (2)
Collection of Vitor M. Monteiro Santos.

Candle All Transistor Clock Radio MC-631; Tokyo Transistor (ID = 1709219) Radio — Tokyo Transistor Candle All Transistor Clock Radio MC-631 (2)
Collection of Vitor M. Monteiro Santos.

Candle All Transistor Clock Radio MC-631; Tokyo Transistor (ID = 1709220) Radio — Tokyo Transistor Candle All Transistor Clock Radio MC-631 (2)
Collection of Vitor M. Monteiro Santos.

Candle All Transistor Clock Radio MC-631; Tokyo Transistor (ID = 1709227) Radio — Tokyo Transistor Candle All Transistor Clock Radio MC-631 (2)
Collection of Vitor M. Monteiro Santos.

Candle All Transistor Clock Radio MC-631; Tokyo Transistor (ID = 1709229) Radio — Tokyo Transistor Candle All Transistor Clock Radio MC-631 (2)
Collection of Vitor M. Monteiro Santos.

Candle All Transistor Clock Radio MC-631; Tokyo Transistor (ID = 1709230) Radio — Tokyo Transistor Candle All Transistor Clock Radio MC-631 (2)
Collection of Vitor M. Monteiro Santos.

Candle All Transistor Clock Radio MC-631; Tokyo Transistor (ID = 1709231) Radio — Tokyo Transistor Candle All Transistor Clock Radio MC-631 (2)
Collection of Vitor M. Monteiro Santos.

Technical Specifications

Number of Transistors
6

Semiconductors
2SA103 2SA101 2SA101 2SB175 2SB176 2SB176

Main principle
Superheterodyne (common); 2 AF stage(s)

Wave bands
Broadcast only (MW).

Power type and voltage
Dry Batteries / 2 x 1,5 & 1,5 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Candle All Transistor Clock Radio MC-631 - Tokyo Transistor Industry Co.,

Shape
Tablemodel with Clock ((Alarm-) Clock Radio).

Dimensions (WHD)
180 x 70 x 85 mm / 7.1 x 2.8 x 3.3 inch

Notes
MW range: 540 - 1600 kHz. Batteries: 2 x 1,5 V for the radio and 1,5 V for the electromechanical clock.

Net weight (2.2 lb = 1 kg)
0.675 kg / 1 lb 7.8 oz (1.487 lb)

Author
Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
