Candle Eight-Transistor 2 Band Radio STR-80 and STR-80M

Tokyo Transistor Industry Co., LTD.; Tokyo

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Tokyo Transistor Industry Co., LTD.; Tokyo

Year
1962 ?

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
312060

- Brand: Candle

Schematics

Candle Eight-Transistor 2 Band Radio STR-80 and STR-80M; Tokyo Transistor (ID = 2410631) Radio — Tokyo Transistor Candle Eight-Transistor 2 Band Radio STR-80 and STR-80M (2)
ebay.com 2 9 3 161548008 seller pv75

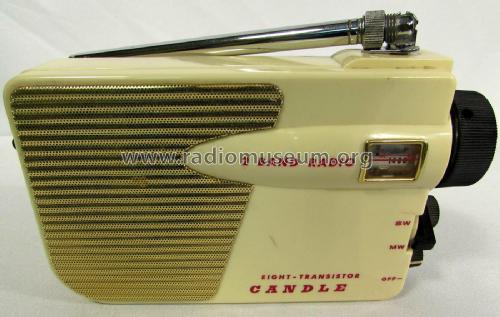

Candle Eight-Transistor 2 Band Radio STR-80 and STR-80M; Tokyo Transistor (ID = 2410624) Radio — Tokyo Transistor Candle Eight-Transistor 2 Band Radio STR-80 and STR-80M (2)
ebay.com 2 9 3 161548008 seller pv75

Candle Eight-Transistor 2 Band Radio STR-80 and STR-80M; Tokyo Transistor (ID = 2410625) Radio — Tokyo Transistor Candle Eight-Transistor 2 Band Radio STR-80 and STR-80M (2)
ebay.com 2 9 3 161548008 seller pv75

Candle Eight-Transistor 2 Band Radio STR-80 and STR-80M; Tokyo Transistor (ID = 2410626) Radio — Tokyo Transistor Candle Eight-Transistor 2 Band Radio STR-80 and STR-80M (2)
ebay.com 2 9 3 161548008 seller pv75

Candle Eight-Transistor 2 Band Radio STR-80 and STR-80M; Tokyo Transistor (ID = 2410627) Radio — Tokyo Transistor Candle Eight-Transistor 2 Band Radio STR-80 and STR-80M (2)
ebay.com 2 9 3 161548008 seller pv75

Candle Eight-Transistor 2 Band Radio STR-80 and STR-80M; Tokyo Transistor (ID = 2410629) Radio — Tokyo Transistor Candle Eight-Transistor 2 Band Radio STR-80 and STR-80M (2)
ebay.com 2 9 3 161548008 seller pv75

Candle Eight-Transistor 2 Band Radio STR-80 and STR-80M; Tokyo Transistor (ID = 2879525) Radio — Tokyo Transistor Candle Eight-Transistor 2 Band Radio STR-80 and STR-80M (2)

Candle Eight-Transistor 2 Band Radio STR-80 and STR-80M; Tokyo Transistor (ID = 2879526) Radio — Tokyo Transistor Candle Eight-Transistor 2 Band Radio STR-80 and STR-80M (2)

Technical Specifications

Number of Transistors
8

Semiconductors

Main principle
Superheterodyne (common)

Wave bands
Broadcast and Short Wave (SW).

Power type and voltage
Dry Batteries / AA: 4 x 1.5 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Candle Eight-Transistor 2 Band Radio STR-80 and STR-80M - Tokyo Transistor Industry Co.,

Shape
Very small Portable or Pocket-Set (Handheld) < 8 inch.

Dimensions (WHD)
7 x 4.25 x 1.75 inch / 178 x 108 x 44 mm

Notes
Cine-type radio.

Model STR-80 has MW and standard SW (4-12 Mc) whereas STR-80M has MW and marine band.

Author
Model page created by Aldo Andreani. See "Data change" for further contributors.
